Fully Automatic On-line Inspection X-ray Scanner
Fully Automatic On-line Inspection X-ray Scanner
Real-time digital imaging, real-time monitoring, high automation, easy operation, wide detection space, large imaging area, clear images.
Main Parameters
| Tube voltage range: | 40~160kV | |||||
| X-ray tube current: | 0.2mA~3.0mA | |||||
| Digital in-time imaging | ||||||
| Micro focus X-ray source | ||||||
| X-axis, Y-axis, Z-axis, A-axis, C-arm multi-axis movement, suitable for multi-angle detection | ||||||
| The surface radiation of the entire machine is far below the standard, approaching natural background radiation, measuring <0.5μSv/h. | ||||||
Highlight of the system
●The equipment utilizes the industry's largest flat panel X-ray imager, providing a wide imaging range, high precision, and fast speed.
●Integrated high-frequency X-ray generator with a fully enclosed design, featuring intelligent management for safety, durability, and reduced equipment wear and failure.
●Dual safety measures with a closed protective cabinet, ensuring that X-ray radiation outside the cabinet approaches natural background radiation levels.
●Separate design for the operating console with multiple mode operation interfaces, making operation simple, user-friendly, and effectively improving work efficiency.
●The unique USM effect in the software makes defects in the inspected products easier to detect.
●The software incorporates the ASTM E505-15 standard chart for aluminum and magnesium castings, facilitating easy comparison during image acquisition.
The fully automatic full-inspection X-ray machine mainly consists of five parts: the X-ray source system, the flat panel imaging system, the image processing system, the automatic conveyor system, and the protection system. It utilizes the principle of X-ray penetration through objects and imaging on a flat panel detector for non-destructive defect detection.
The automation level of the fully automatic full-inspection X-ray machine is very high, with fast detection speed, greatly improving the efficiency of flaw detection, reducing inspection costs, and making detection data easy to store and query. The image processing system is independently developed by our company, with proprietary intellectual property rights. Its clarity, ease of use, and intelligence are leading in the domestic industry, earning widespread praise.
This equipment is mainly used for internal defect detection of materials such as aluminum die casting, cast iron die casting, and plastics.

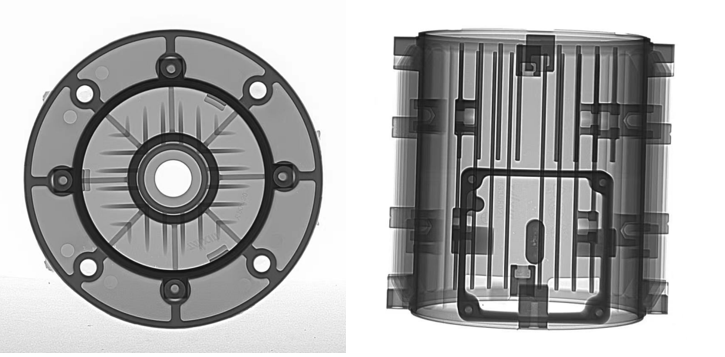

Inspection Images
