Trolley Cabinet X-ray NDT Scanner
Large Trolley Cabinet X-ray NDT Scanner
Real-time digital imaging, real-time monitoring, high automation, easy operation, wide detection space, large imaging area, clear images.
Main Parameters
| Tube voltage range: | 60~160kV | |||||
| X-ray tube current: | 0.5mA~3.12mA | |||||
| Digital in-time imaging | ||||||
| Micro focus X-ray source | ||||||
| X-axis, Y-axis, Z-axis, A-axis, C-arm multi-axis movement, suitable for multi-angle detection | ||||||
| The surface radiation of the entire machine is far below the standard, approaching natural background radiation, measuring <0.5μSv/h. | ||||||
Highlight of the system
●The equipment utilizes the industry's largest flat panel X-ray imager, providing a wide imaging range, high precision, and fast speed.
●Integrated high-frequency X-ray generator with a fully enclosed design, featuring intelligent management for safety, durability, and reduced equipment wear and failure.
●The automatic feeding and discharging of the guide rail type is convenient for workpiece inspection
●Dual safety measures with a closed protective cabinet, ensuring that X-ray radiation outside the cabinet approaches natural background radiation levels.
●Separate design for the operating console with multiple mode operation interfaces, making operation simple, user-friendly, and effectively improving work efficiency.
●The unique USM effect in the software makes defects in the inspected products easier to detect.
●The software incorporates the ASTM E505-15 standard chart for aluminum and magnesium castings, facilitating easy comparison during image acquisition.
Applications
FSX-T160-P4343C X-ray system can be widely used in the field of non-destructive testing, such as detecting bubbles, cracks, impurities, and looseness in metal and non-metal castings, detecting defects in metal welding and mixed metal and non-metal components, and are extensively applied in the multi-angle testing of product samples and batch production. Metals include aluminum alloy die-casting, stainless steel, iron, etc., while non-metals include plastics, rubber, etc. Additionally, they can be used for detecting bubbles in the adhesive in the light industry field.

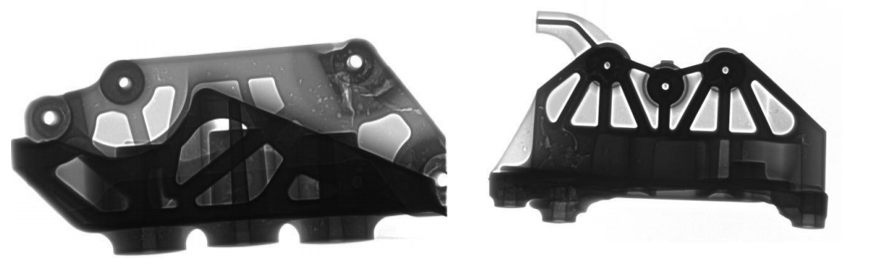

Inspection Images
